F0850 Fixed-Angle Aluminum Rotor 8 x 50 mL, 16,500 rpm, 29,220 x g

Product No:364640

F0850 Fixed-Angle Rotor, Aluminum; Major applications: Density gradient separations of erythrocytes, cell lysate fractions, granules, as well as different separations of DNA, proteins, and viruses. Places: 8 Tube Volumes: 50 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0", class visitable. Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R; Max RPM 16,500, 9,000, 10,000, 9,000, 11,400. Max RCF, 29,220, 8,528, 10,528, 8,528, 13,682. Notes: Maximum speed/RCF are different in the Allegra 64R, Allegra 30 Series; centrifuges and the Allegra X-22 Series centrifuges. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, Allegra X-30 Series and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.

Product Specifications

Platform Allegra 64
Rotor Type Fixed-Angle (General Purpose)
Angle 25
Maximum RPM 16,500 rpm (performance based on Allegra 64R)
Max g-Force 29,220.00
k-Factor 973
Number of Tubes 8x50 mL / 29x107 mm(8x50 mL / 1x4 in)
Nominal Capacity 400 mL

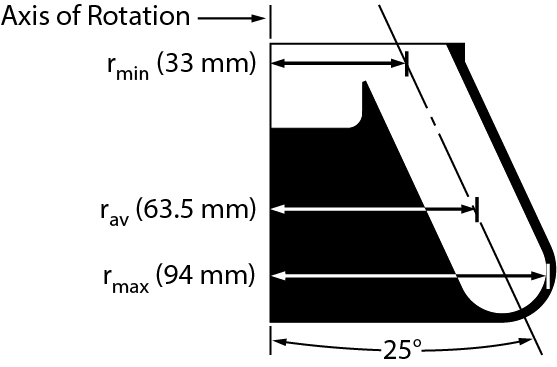

rMAX 94
rMIN 33
rAV 63.5 mm
Materials Aluminum
Package Quantity 1
